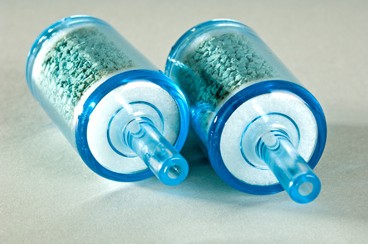

Disposable In-Line Adsorbers (Acid Scrubber Filter)

Disposable In-Line Adsorbers (DIA) consist of polyamide or PVDF bodies filled with granular adsorption material and fitted with integral inlet and outlet filter pads. Flow rates are the same as for grade 5 elements within the same size bodies. However, the adsorption process means more important selection considerations will be the volume of adsorbent and the contact time.

Two body sizes are available, each containing 11cc and 110cc of adsorbent (approx) and they have 1/4″ and 1/2″ spigots respectively. The larger DIF can be supplied with threaded male connections.
