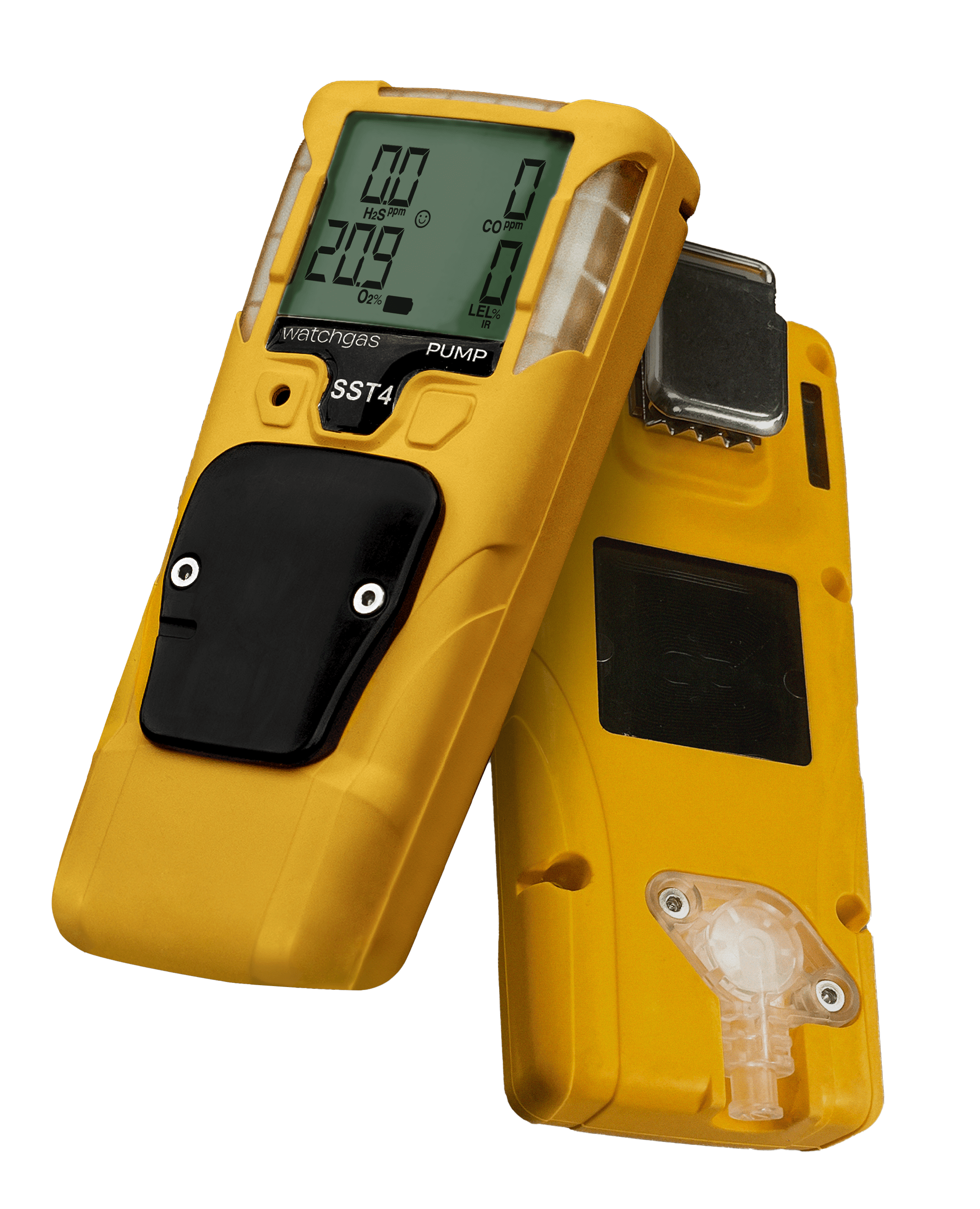

SST4 Pump

The SST4 Pump is designed with simplicity, size, and with the user in mind. With its compact yet rugged design, the SST4 Pump is there when needed. From use in confined spaces, storage tanks, and industrial sites. With a wide range of user options, the SST4 Pump can be tailored for many use cases and applications. Compliant with RTR and SST Range app

  • Compliant with RTR and SST Range app
  • Near Field Communication built in as standard
  • Longer runtimes
  • Fastest T90 in the industry
  • Wireless charging

 Description

As many industries move from single gas to a multigas approach, it is essential for end-user adoption. The SST4 Pump is designed with simplicity, size, and with the user in mind. With its compact yet rugged design, the SST4 Pump is there when you need it. From use in the hot temperatures of the steel industry or Hazmat user through to the extreme environments found in the Oil and Gas industry. With a wide range of user options, the SST4 can be tailored for many use cases and applications. The device can be set up simply using the WatchGas SST Application, calibration, and bump test records. With Compliance check, it has never been easier to manage, maintain, and ensure maximum uptime of your fleet of devices

Gas Sensor

  • H2s
  • CO
  • O2

LEL/LPC

Categories: ,

Additional information

Specification

Size 150 x 62.2 x 32.4 mm (5.9x 2.4 x 1.3 in.) *Dimensions are stated without alligator clip. Please add 4mm (0.16 in.) in depth for dimensions with alligator clip
Weight 275g (6.3 oz.)
Temperature -40 to +60°C / -40 to +140°F
Humidity
5% – 95% RH (non-condensing)
Induction charging 5-6 hours
Battery Life SST4 Pump LPC Low Power Catalytic: 50hr SST4 Pump HP LEL: 18hr SST4 Pump IR: 100hr
Event logging Last 100 Events
Data logging 6 months
IP
IP65-68
Communication NFC
Calibration 6 months as standard
Certifications & Approvals North America: Class I, Div. 1, Gr. A, B, C, D, T4 US: Class 1 Zone 0 AEx ia IIC T4 Ga Canada: Ex ia IIC T4 Ga ATEX/IECEx/UKEX LEL-LPC and LEL-CAT II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma -40°C ≤ Tamb ≤ +60°C EN 50270:2015+AC:2016, EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1, RoHS EN63000:2018 LEL-IR sensor II 1 G Ex ia op is IIC T4 Ga I M1 Ex ia op is I Ma -40°C ≤ Tamb ≤ +60°C
Warranty 2 years

Brochure

  1. Datasheet
  2. Manual
  3. Declaration of Conformity – SST4 Pump
